Bachmann 3F Fowler Jinty DCC Fitting Guide (DCC Ready version)

Locoyard Bachmann Jinty 3F S&DJR - 23 (bunker)

One of the more recent additions to the Locoyard fleet is S&DJR 3F Jinty number 23.  It will be reviewed in due course, but for the time being here is the guide to fit a DCC decoder.

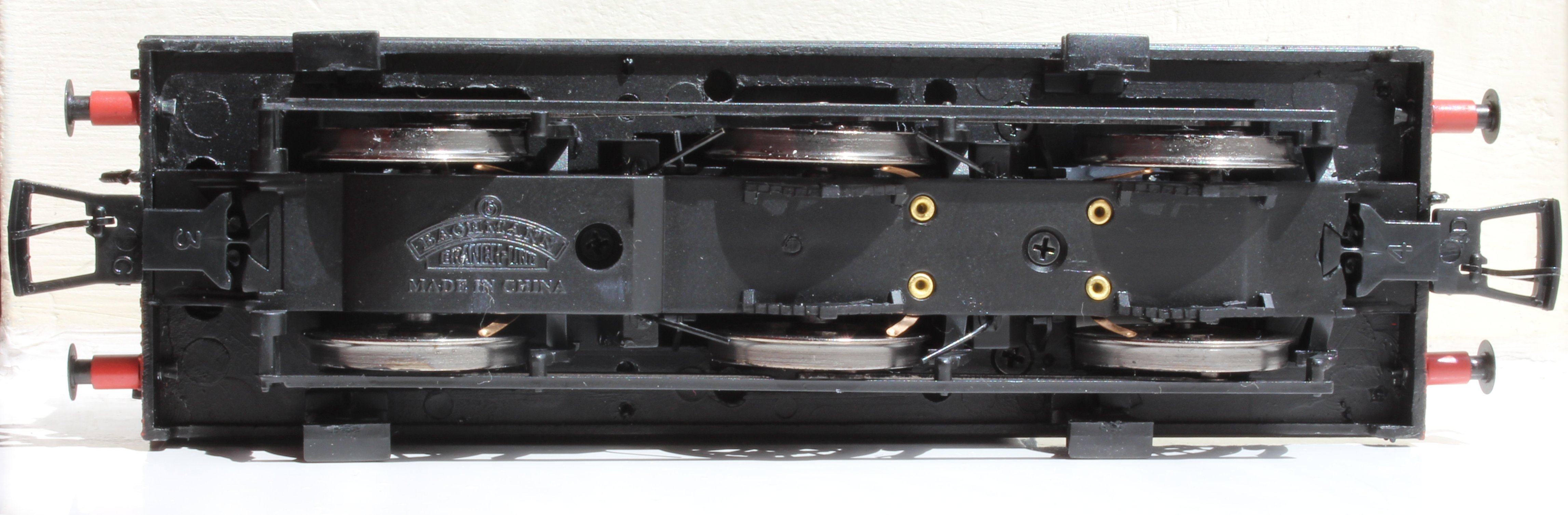

Locoyard Bachmann Jinty 3F DCC Fitting Guide (1)This model is a DCC Ready version of the Bachmann Jinty.  Many earlier versions of the model are not DCC Ready and require hard-wiring for digital operation, although some were DCC Fitted.  To fit a DCC decoder you will need a small to medium sized 8-pin decoder with a wiring harness.  As always, check the model works well in DC mode before starting the conversion.  The first step is to remove the NEM tension-lock couplings from their pockets.

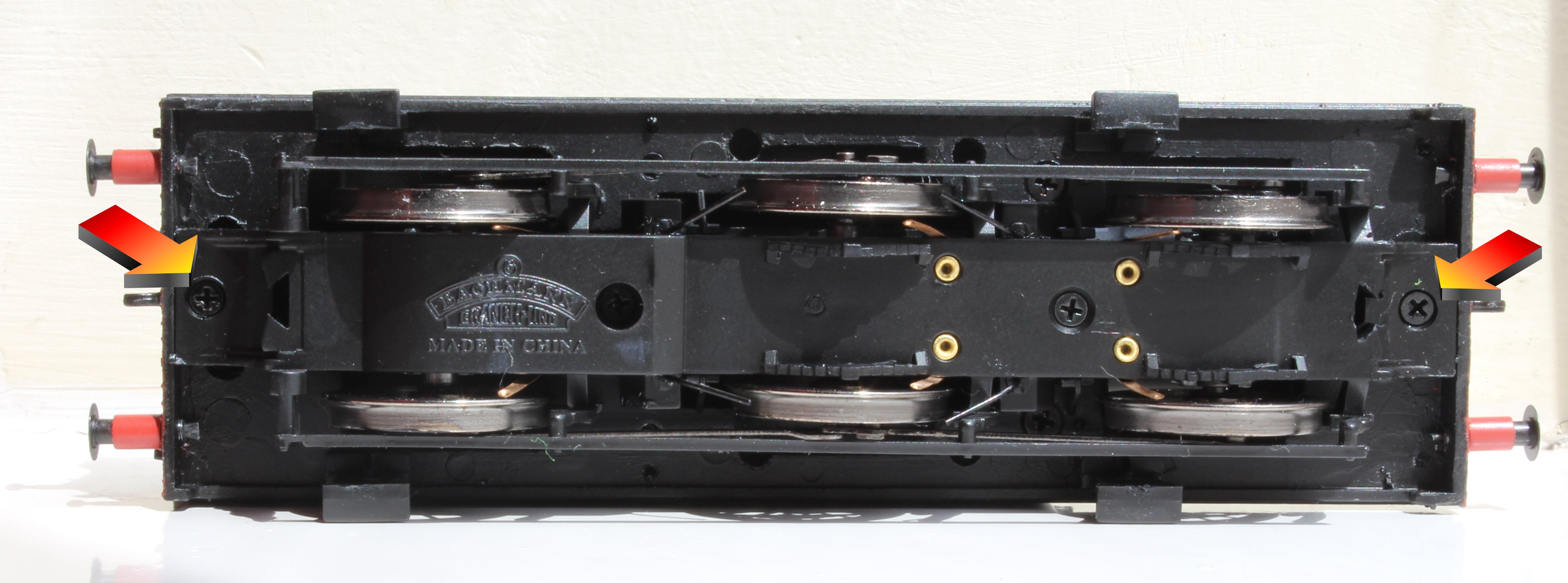

Locoyard Bachmann Jinty 3F DCC Fitting Guide (2)The next step is to unscrew the two screws as indicated above and separate the body from the chassis.

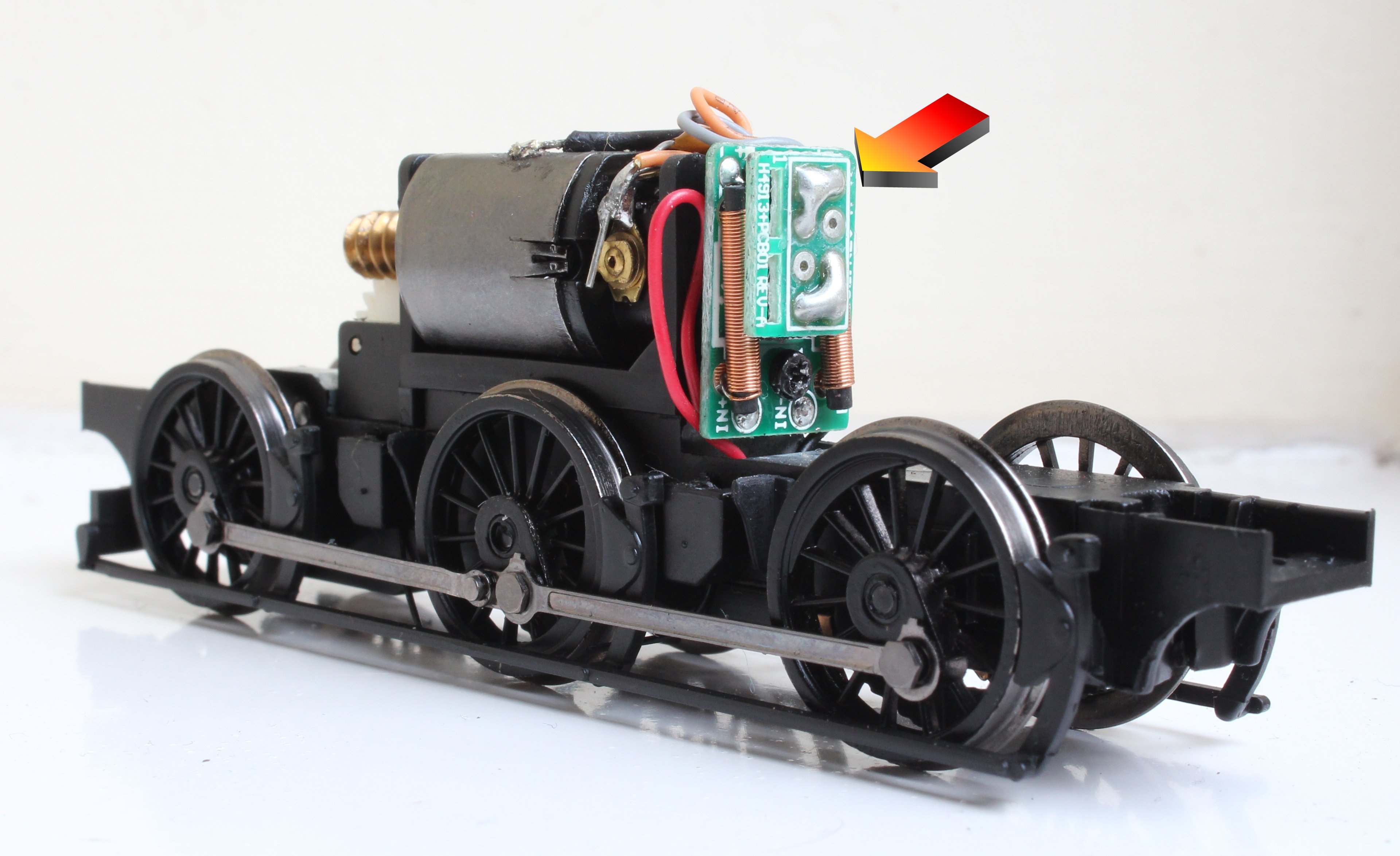

Locoyard Bachmann Jinty 3F DCC Fitting Guide (3)The DCC 8-pin plug is at the front of the model.  Remove the blanking plate (above) and fit the decoder as per manufacturers instructions.  Test that it works now.  All being well, the DCC chip can be fed into the smokebox in the body of the model and the chassis can be re-attached to the body of the model.  And that’s it!  A nice simple job!
